EZ-PC Series

Coxreels EZ-PC Series

Coxreels® PC Series spring driven EZ-Coil® "Power Cord" reels are durable, industrial grade power sources. They are the solution to tangled extension cords and self-retract to provide safety, productivity and performance. Modeled after the P and SH Series, the PC Series are crafted for long-lasting, trouble-free use even in the most demanding environments.

Call us TODAY at 727-835-0673 or
Toll Free at 800-761-4298

Get A Free Quote!

  Quantity Add to
Quote
Model Lbs Cord AWG/No VOLTs Ft. AMPs
EZ-PC13-5016-A 34 Y 16 115 50 13
EZ-PC24-0016-A 80 Y 16 115 100 13
EZ-PC13-5012-A 40 Y 12 115 50 13
EZ-PC24-0012-A 90 Y 12 115 100 20
EZ-PC13-5012-B 41 Y 12 115 50 20
EZ-PC24-0012-B 92 Y 12 115 100 20
EZ-PC13-5016-C 37 Y 16 115 50 0.3
EZ-PC24-0016-C 82 Y 16 115 100 13
EZ-PC13-5016-D 37 Y 16 115 50 13
EZ-PC24-0016-D 80 Y 16 115 100 13
EZ-PC13-5016-E 36 Y 16 115 50 13
EZ-PC24-0016-E 80 Y 16 115 100 13
EZ-PC13-5012-F 42 Y 12 115 50 13
EZ-PC24-0012-F 90 Y 12 115 100 20
EZ-PC13-5012-X 40 Y 12 115 50 20
EZ-PC24-0012-X 81 Y 12 115 100 20
EZ-PC13L-5016 31 N 16 115 50 25
EZ-PC24L-0016 62 N 16 115 100 25
EZ-PC13L-5012 29 N 12 115 50 25
EZ-PC24L-0012 64 N 12 115 100 25

  • Selection of electrical accessories.
  • Single pedestal cord reel with space saving design facilitates workplace organization.
  • Guide arm adjusts to wall, floor & overhead positions.
  • Enclosed factory tuned & matched cartridge-style spring motor.
  • Non-corrosive stainless steel spring, pawl & zinc plated ratchet.
  • Multi-position lock ratchet mechanism secures cord at desired length.
  • Electrical current runs through a 25AMP / 600V rated slip ring (35AMP on select models).
  • Professional grade heavy duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide.
  • Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings

Applications

Power Tools
Light Source
General Industrial
Manufacturing Plants
Automotive & Fleet Service Centers
Construction Sites
Workshops

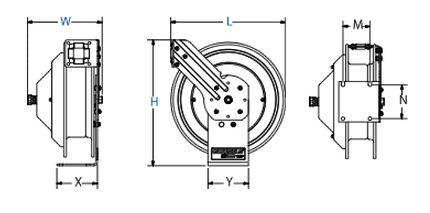

Dimensions for EZ-PC Series Spring Driven Reels from Coxreels

Low Pressure Models

Model W H L X Y M N
EZ-PC13-5016-A 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24-0016-A 10-1/4" 25-1/2" 24" 6" 6" 4" 5"
EZ-PC13-5012-A 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24-0012-A 10-1/4" 25-1/2" 24" 6" 6" 4" 5"
EZ-PC13-5012-B 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24-0012-B 10-1/4" 25-1/2" 24" 6" 6" 4" 5"
EZ-PC13-5016-C 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24-0016-C 10-1/4" 25-1/2" 24" 6" 6" 4" 5"
EZ-PC13-5016-D 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24-0016-D 10-1/4" 25-1/2" 24" 6" 6" 4" 5"
EZ-PC13-5016-E 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24-0016-E 10-1/4" 25-1/2" 24" 6" 6" 4" 5"
EZ-PC13-5012-F 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24-0012-F 10-1/4" 25-1/2" 24" 6" 6" 4" 5"
EZ-PC13-5012-X 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24-0012-X 10-1/4" 25-1/2" 24" 6" 6" 4" 5"
EZ-PC13L-5016 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24L-0016 10-1/4" 25-1/2" 24" 6" 6" 4" 5"
EZ-PC13L-5012 8-1/2" 14-7/8" 13-1/2" 5" 6" 3" 5"
EZ-PC24L-0012 10-1/4" 25-1/2" 24" 6" 6" 4" 5"

   Click to view Reels Accessories
