EZ-SH Series

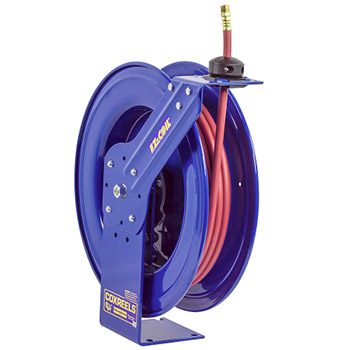

Coxreels EZ-SH Series

Coxreels® SH Series Super Hub spring driven hose reels have a long history of reliable performance. The larger sized chassis and frame handles longer lengths and larger diameters of hose. Coxreels® original "Super Hub" dual axle support reel increases the stability during use, minimizes vibration and increases the structural integrity of the reel.

Call us TODAY at 727-835-0673 or
Toll Free at 800-761-4298

Get A Free Quote!

Low Pressure Models

  Quantity Add to
Quote
Model Lbs Hose I.D. O.D. Ft. PSI
EZ-SH-350 50 Y 3/8" 5/8" 50 300
EZ-SHL-350 44 N 3/8" 5/8" 50 300
EZ-SH-375 59 Y 3/8" 5/8" 75 300
EZ-SHL-375 50 N 3/8" 5/8" 75 300
EZ-SH-3100 71 Y 3/8" 5/8" 100 300
EZ-SHL-3100 60 N 3/8" 5/8" 100 300
EZ-SH-450 54 Y 1/2" 3/4" 50 300
EZ-SHL-450 46 N 1/2" 3/4" 50 300
EZ-SH-475 68 Y 1/2" 3/4" 75 300
EZ-SHL-475 57 N 1/2" 3/4" 75 300
EZ-SH-4100 81 Y 1/2" 3/4" 100 300
EZ-SHL-4100 66 N 1/2" 3/4" 100 300
EZ-SH-525 52 Y 3/4" 1-1/16" 25 300
EZ-SHL-525 45 N 3/4" 1-1/16" 25 300
EZ-SH-550 69 Y 3/4" 1-1/16" 50 300
EZ-SHL-550 56 N 3/4" 1-1/16" 50 300
Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum temp. 250˚ F. Note: Do not exceed listed hose O.D. to obtain maximum length.

Medium Pressure Models

  Quantity Add to
Quote
Model Lbs Hose I.D. O.D. Ft. PSI
EZ-MP-350 65 N 3/8" 11/16" 50 3000
EZ-MPL-350 53 N 3/8" 11/16" 50 3000
EZ-MP-450 67 Y 1/2" 13/16" 50 2500
EZ-MPL-450 53 N 1/2" 13/16" 50 2500
Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Maximum temperature 250˚ F. Note: Do not exceed listed hose O.D. to obtain maximum length.

High Pressure Models

  Quantity Add to
Quote
Model Lbs Hose I.D. O.D. Ft. PSI
EZ-HP-150 64 Y 1/4" 9/16" 50 5000
EZ-HPL-150 53 N 1/4" 9/16" 50 5000
EZ-HP-350 65 Y 3/8" 11/16" 50 4000
EZ-HPL-350 53 N 3/8" 11/16" 50 4000
Models with hose are for air or water service with a maximum temperature 150˚ F. Models less hose can be used for air, water or oil. Note: Do not exceed listed hose O.D. to obtain maximum length.

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat finish
  • CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
  • Industry leading 2 year manufacturer's limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide
  • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet (Zinc plated steel swivel on HP models)
  • Swivel Seals: NITRILE
  • Sturdy single pedestal reel features Coxreels' exclusive Super Hub™ dual axle support system
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation
  • Controlled retraction speed up to 80% slower on EZ-Coil® models
  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length

Applications

Air / Water Services
Pneumatic Tools
Washdown
Lubrication
Service / Mechanic / Utility Vehicles
Chemical Fluid Transfer
General Industrial
Manufacturing Plants & Facilities
Maintenance, Repair & Operations
Automotive & Fleet Service Centers

Dimensions for EZ-SH Series Spring Driven Reels from Coxreels

Low Pressure Models

Model W H L M N X Y
EZ-SH-350 8-1/4" 21-1/4" 19-1/2" 4" 5" 6" 6"
EZ-SHL-350 8-1/4" 21-1/4" 19-1/2" 4" 5" 6" 6"
EZ-SH-375 8-1/4" 25-1/2" 24" 4" 5" 6" 6"
EZ-SHL-375 8-1/4" 21-1/4" 24" 4" 5" 6" 6"
EZ-SH-3100 8-1/4" 21-1/4" 24" 4" 5" 6" 6"
EZ-SHL-3100 8-1/4" 21-1/4" 24" 4" 5" 6" 6"
EZ-SH-450 8-1/4" 21-1/4" 19-1/2" 4" 5" 6" 6"
EZ-SHL-450 8-1/4" 21-1/4" 19-1/2" 4" 5" 6" 6"
EZ-SH-475 8-3/4" 25-1/2" 24" 4" 5" 6" 6"
EZ-SHL-475 8-3/4" 25-1/2" 24" 4" 5" 6" 6"
EZ-SH-4100 8-3/4" 25-1/2" 24" 4" 5" 6" 6"
EZ-SHL-4100 8-3/4" 25-1/2" 24" 4" 5" 6" 6"
EZ-SH-525 9-3/8" 25-1/2" 19-1/2" 4" 5" 6" 6"
EZ-SHL-525 9-3/8" 25-1/2" 19-1/2" 4" 5" 6" 6"
EZ-SH-550 9-7/8" 25-1/2" 24" 4" 5" 6" 6"
EZ-SHL-550 9-7/8" 25-1/2" 24" 4" 5" 6" 6"

Medium Pressure Models

Model W H L M N X Y
EZ-MP-350 8-1/4" 21-1/4" 19-1/2" 4" 5" 6" 6"
EZ-MPL-350 8-1/4" 21-1/4" 19-1/2" 4" 5" 6" 6"
EZ-MP-450 8-3/4" 25-1/2" 19-1/2" 4" 5" 6" 6"
EZ-MPL-450 8-3/4" 25-1/2" 19-1/2" 4" 5" 6" 6"

High Pressure Models

Model W H L M N X Y
EZ-HP-150 8-3/4" 25-1/2" 19-1/2" 4" 5" 6" 6"
EZ-HPL-150 8-3/4" 25-1/2" 19-1/2" 4" 5" 6" 6"
EZ-HP-350 9-1/4" 25-1/2" 19-1/2" 4" 5" 6" 6"
EZ-HPL-350 9-1/4" 25-1/2" 19-1/2" 4" 5" 6" 6"
