100W Series

Coxreels 100W Series

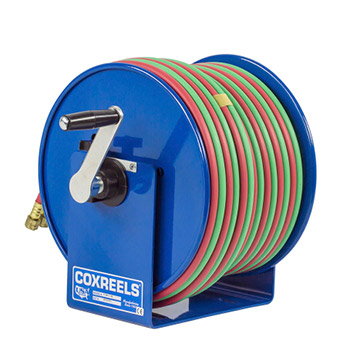

Coxreels® 100W Series "Welding" hand crank hose reels are compact, lightweight and versatile. The sturdy "U" shaped frame and all steel construction make this one tough little reel. Save time and effort while increasing the safety of your work environment with the 100W Series.

Call us TODAY at 727-835-0673 or
Toll Free at 800-761-4298

Get A Free Quote!

Low Pressure Models

  Quantity Add to
Quote		 Model Lbs Hose I.D. O.D. Ft. PSI
112W-1-100 37 N 1/4" 1/4" 100 200
112W-1-50 28 Y 1/4" 1/4" 50 200
112WL-1-100 18 N 1/4" 1/4" 100 200
112WL-1-50 18 N 1/4" 1/4" 50 200
112WT-1-100 37 Y 1/4" 1/4" 100 200
112WT-1-50 28 Y 1/4" 1/4" 50 200
112WTL-1-100 18 N 1/4" 1/4" 100 200
112WTL-1-50 18 N 1/4" 1/4" 50 200
117W-1-200 68 Y 1/4" 1/4" 200 200
117WL-1-200 30 N 1/4" 1/4" 200 200
117WT-1-200 68 Y 1/4" 1/4" 200 200
117WTL-1-200 30 N 1/4" 1/4" 200 200
Models with hose are for air or water service with a maximum temperature 150° F. Models less hose can be used for air, water or oil. Note: Do not exceed listed hose O.D. to obtain maximum length.

  • Professional grade heavy duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide.
  • External 90° full-flow dual ported brass swivel with VITON® seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
  • Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.
  • Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
  • High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
  • long lasting, chip resistant and rust inhibiting CPC powder coat finish, composite bearing for smooth rotation and direct hand crank for easy mechanical retraction.
  • Direct hand crank rewind.
  • Composite bearing for smooth rotation.
  • External 90° full-flow dual ported brass swivel offering both connections from the same side of the reel.
  • Swivel Seals: VITON®

Applications

Manufacturing Plants & Facilities
Maintenance, Repair & Operations
Welding / Service Trucks
Welding Shops
Automotive & Fleet Maintenance
Garage Settings
Pipelines
Mining, Construction & Railroad Operations
Marine / Ship Building / Offshore

Dimensions for 100W Series Spring Driven Reels from Coxreels

Low Pressure Models

Model W H L M N X Y
112W-1-100 18-3/4" 13" 12" 5-1/2" 3" 9-1/2" 6"
112W-1-50 15-1/2" 13" 12" 4" 3" 6" 6"
112WL-1-100 18-3/4" 13" 12" 5-1/2" 3" 9-1/2" 6"
112WL-1-50 15-1/2" 13" 12" 4" 3" 6" 6"
112WT-1-100 18-3/4" 13" 12" 5-1/2" 3" 9-1/2" 6"
112WT-1-50 15-1/4" 13" 12" 4" 3" 6" 6"
112WTL-1-100 18-3/4" 13" 12" 5-1/2" 3" 9-1/2" 6"
112WTL-1-50 15-1/4" 13" 12" 4" 3" 6" 6"
117W-1-200 18-3/4" 18" 17" 5-1/2" 3" 9-1/2" 6"
117WL-1-200 18-3/4" 18" 17" 5-1/2" 3" 9-1/2" 6"
117WT-1-200 18-1/4" 18" 17" 5-1/2" 3" 9-1/2" 6"
117WTL-1-200 18-1/4" 18" 17" 5-1/2" 3" 9-1/2" 6"
